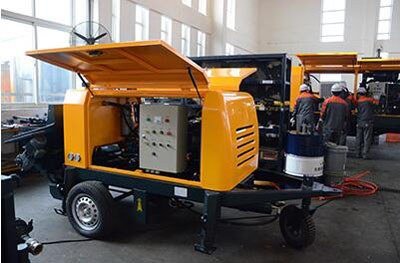

S Value Struction Of Small Portable Concrete Pump

Posted On: 12/10/2016 | Posted by: Haomei Concrete Pumps

1、2——HYD cylinder 3——water tank 4——cylinder rod 5、6——concrete cylinder 7、8——concrete piston 9——valve box 10——S pipe valve 11——swing arm 12、13——swing cylinder 14——concrete outlet

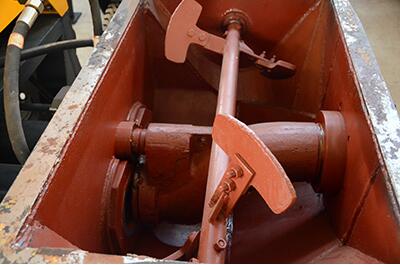

S valve structure of small portable concrete pump as the following:

The pumping system employs a S-pipe design valve system. This system incorporates material cylinders linked to hydraulic cylinders that cycle alternately. With concrete material in the hopper and the pump operating, a material cylinder retracts, drawing material into the cylinder. At full retraction of the cylinder, a signal is sent to both the S-tube swing cylinder and the drive cylinder directional valves causing the s-tube to shift position to the fully loaded material cylinder and the drive cylinders to change direction.
